Fruit Orchard Structure for Apple Farming

Fruit Orchard Structure for Apple Farming


A fruit orchard structure for apple farming refers to a specially designed framework or enclosure used in apple orchards to provide support, protection, and optimized growing conditions for apple trees. These structures are tailored to the specific needs of apple cultivation, enhancing productivity and fruit quality.

Common/ Referred names

This type of structure may be known as an apple orchard structure, apple tree greenhouse structure, or apple farming structure.


Technical Specifications

Technical specifications typically include:
  1. Sturdy framework: Constructed from durable materials such as steel or aluminum to support apple trees and withstand environmental stressors.
  2. Covering material: Options include UV-stabilized shade netting, plastic film, or bird netting to provide protection from pests, birds, and adverse weather conditions.
  3. Customizable dimensions: Tailored to fit the layout and size of apple orchards, with provisions for various planting configurations.
  4. Ventilation and irrigation systems: Ensuring optimal airflow, humidity, and water distribution within the structure.
  5. Pest control measures: Integration of screens, netting, or traps to prevent pest infestations and minimize crop damage.

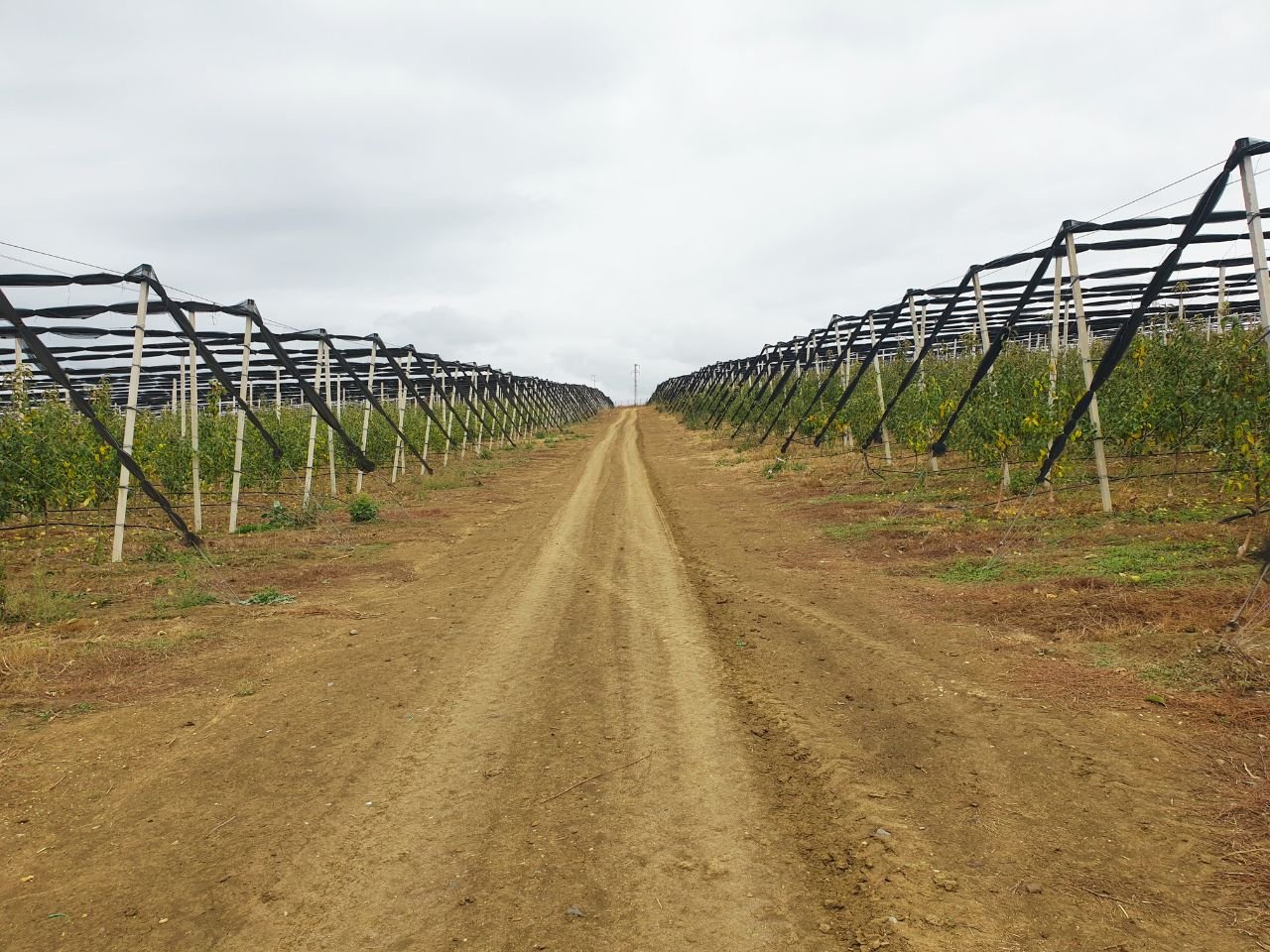

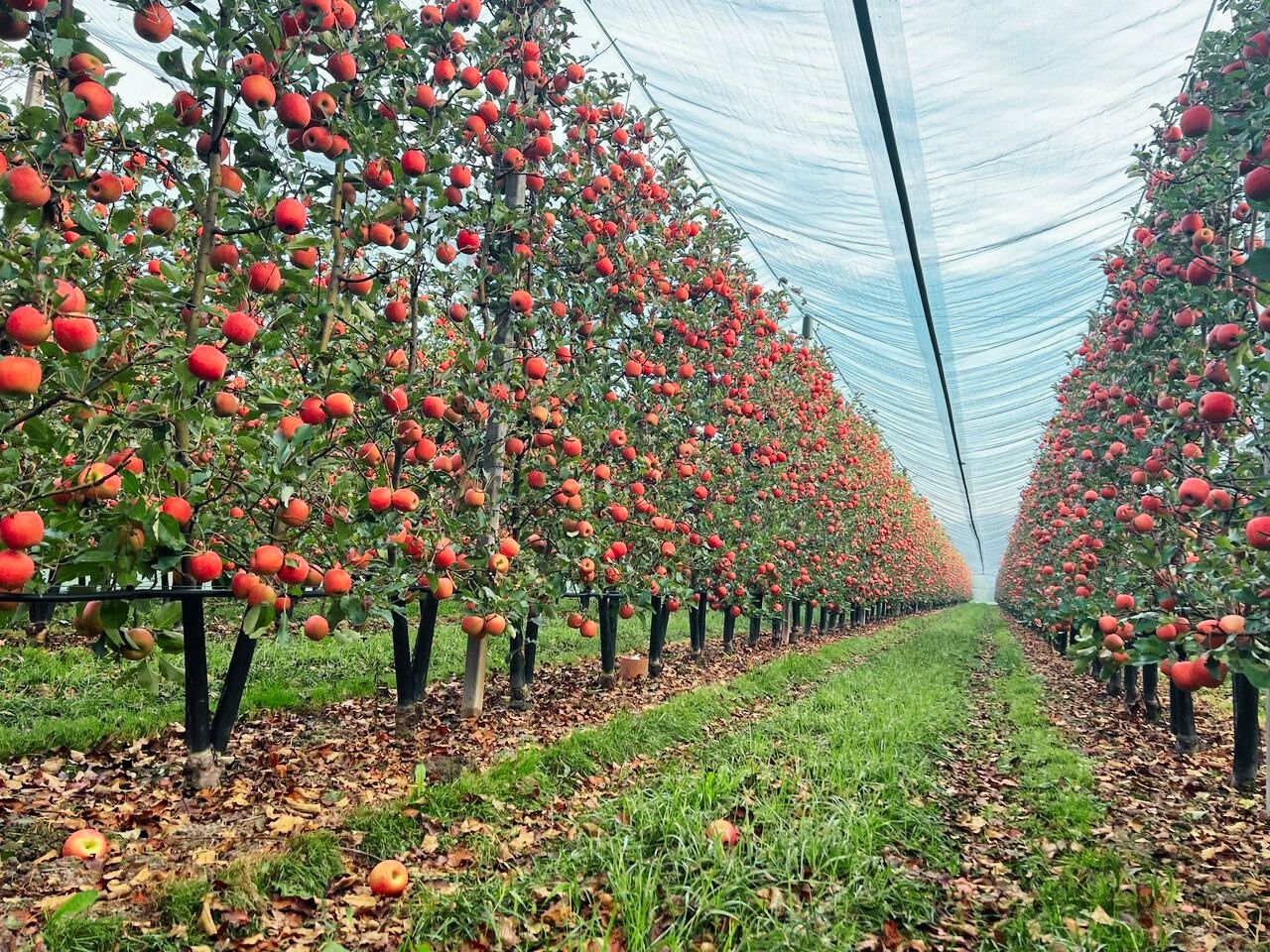

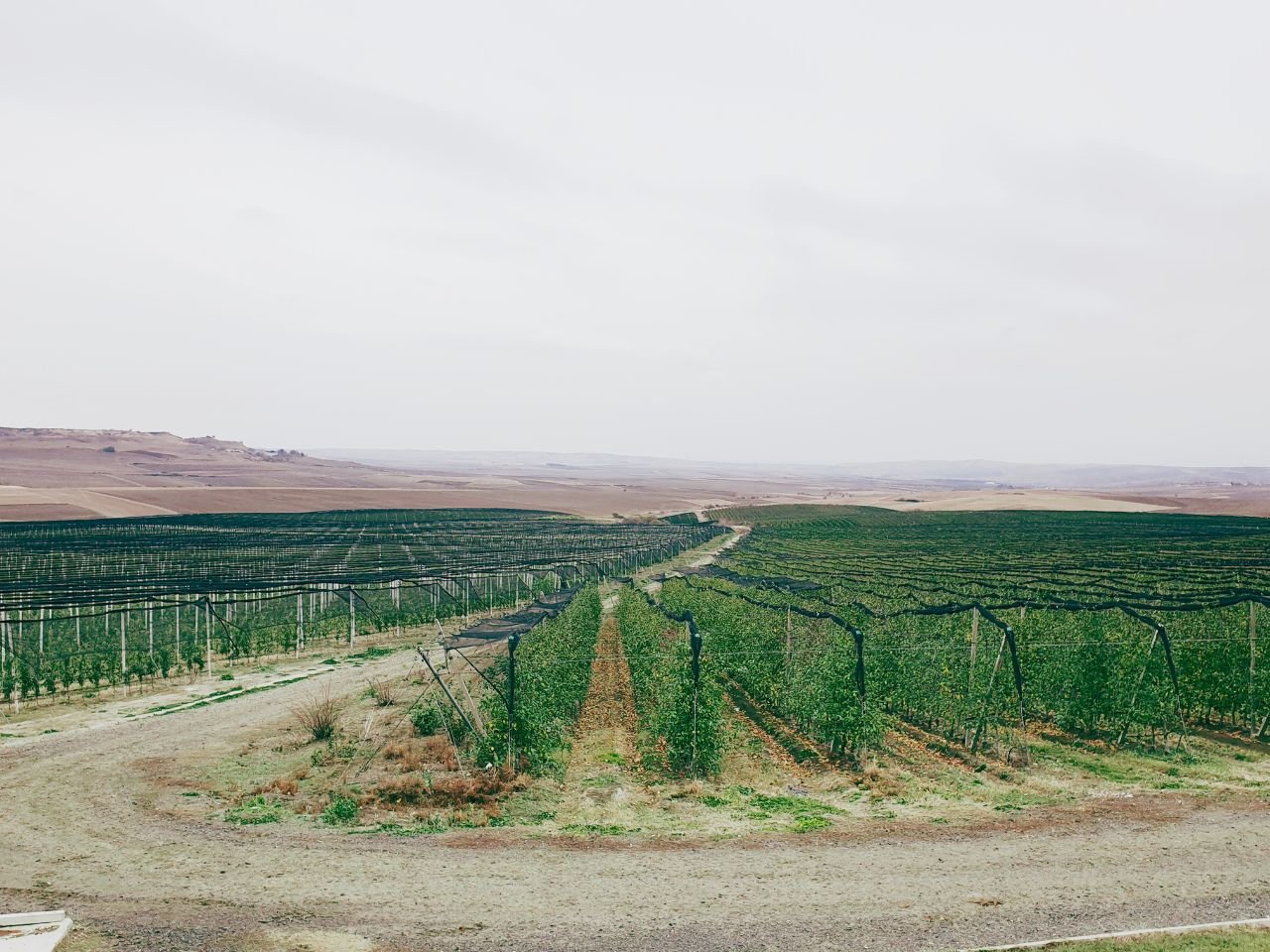

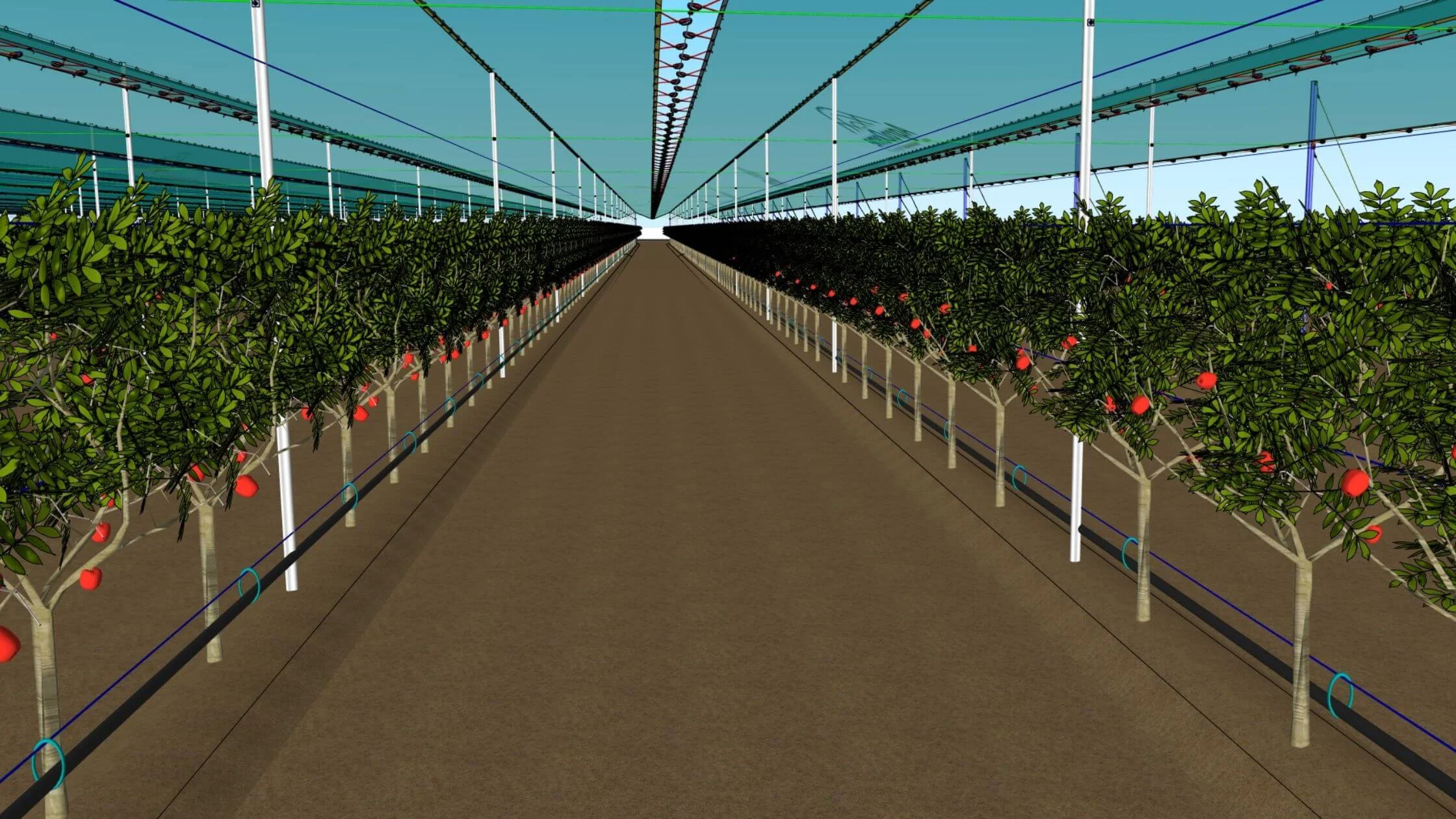

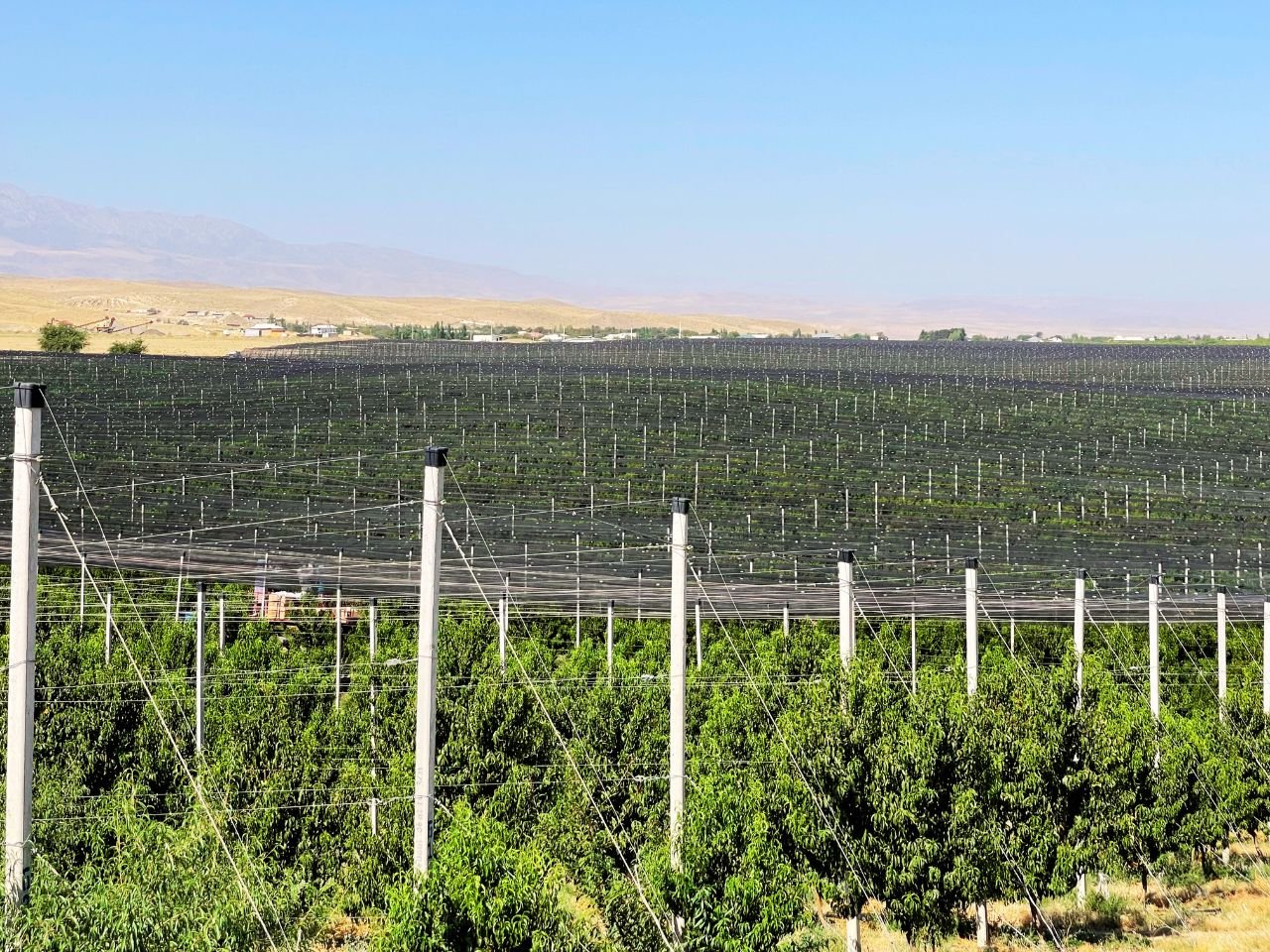

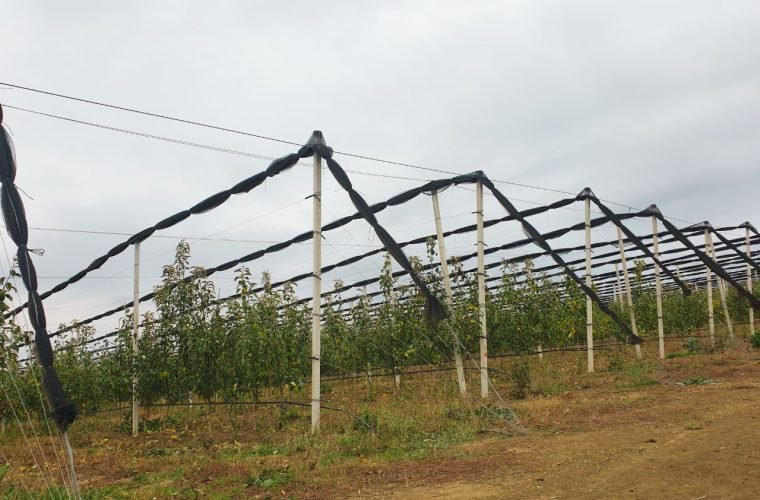

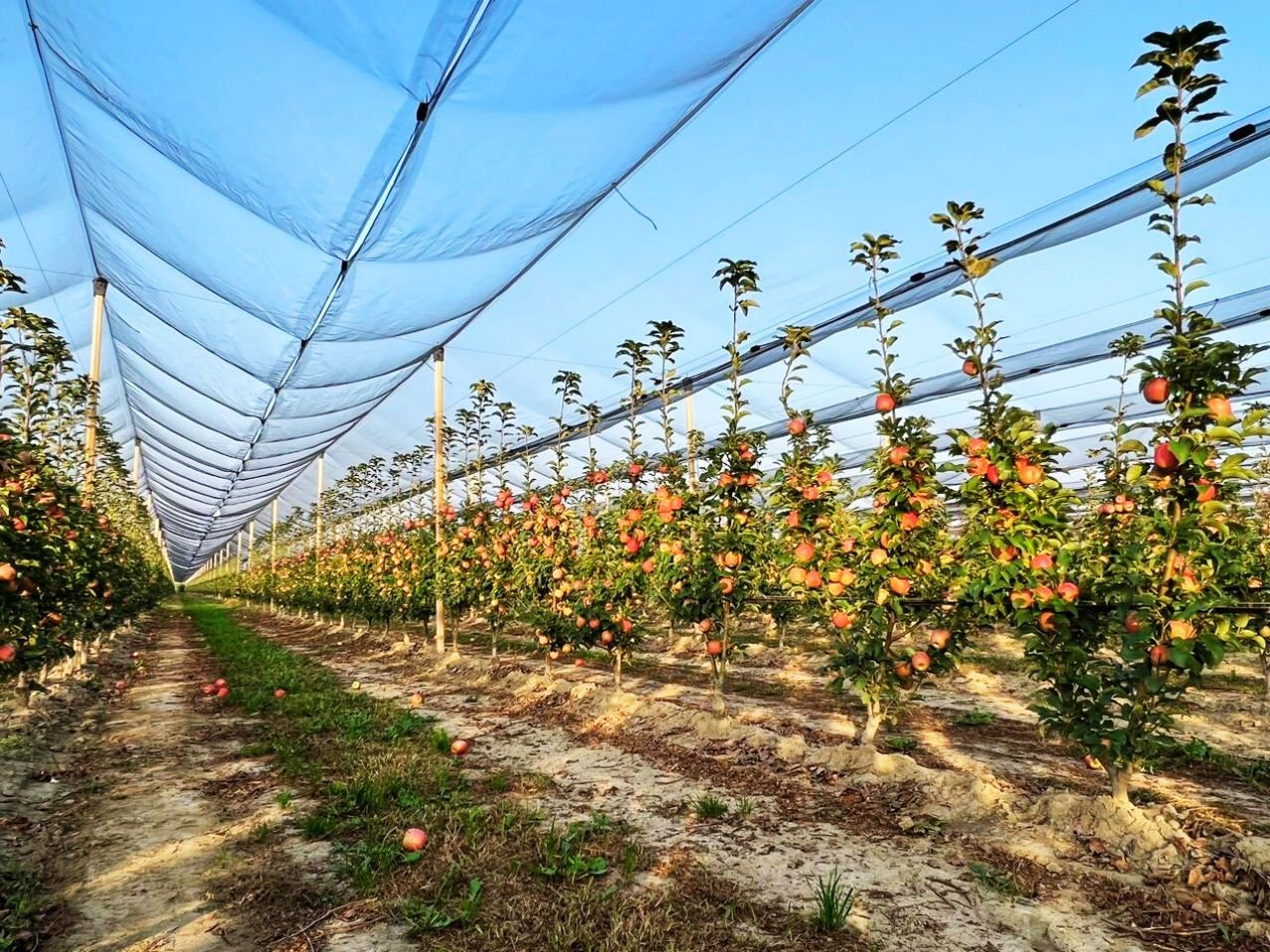

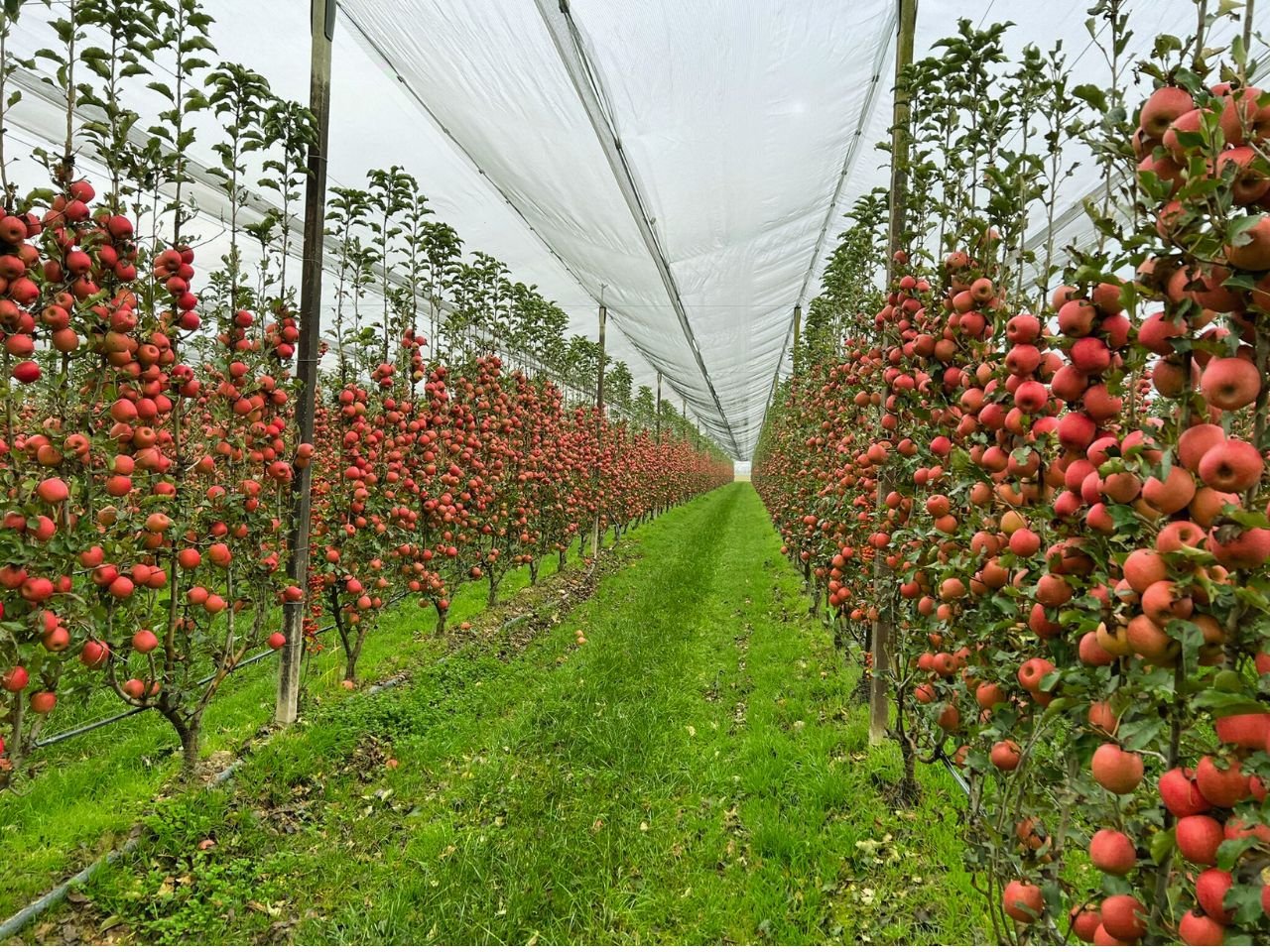

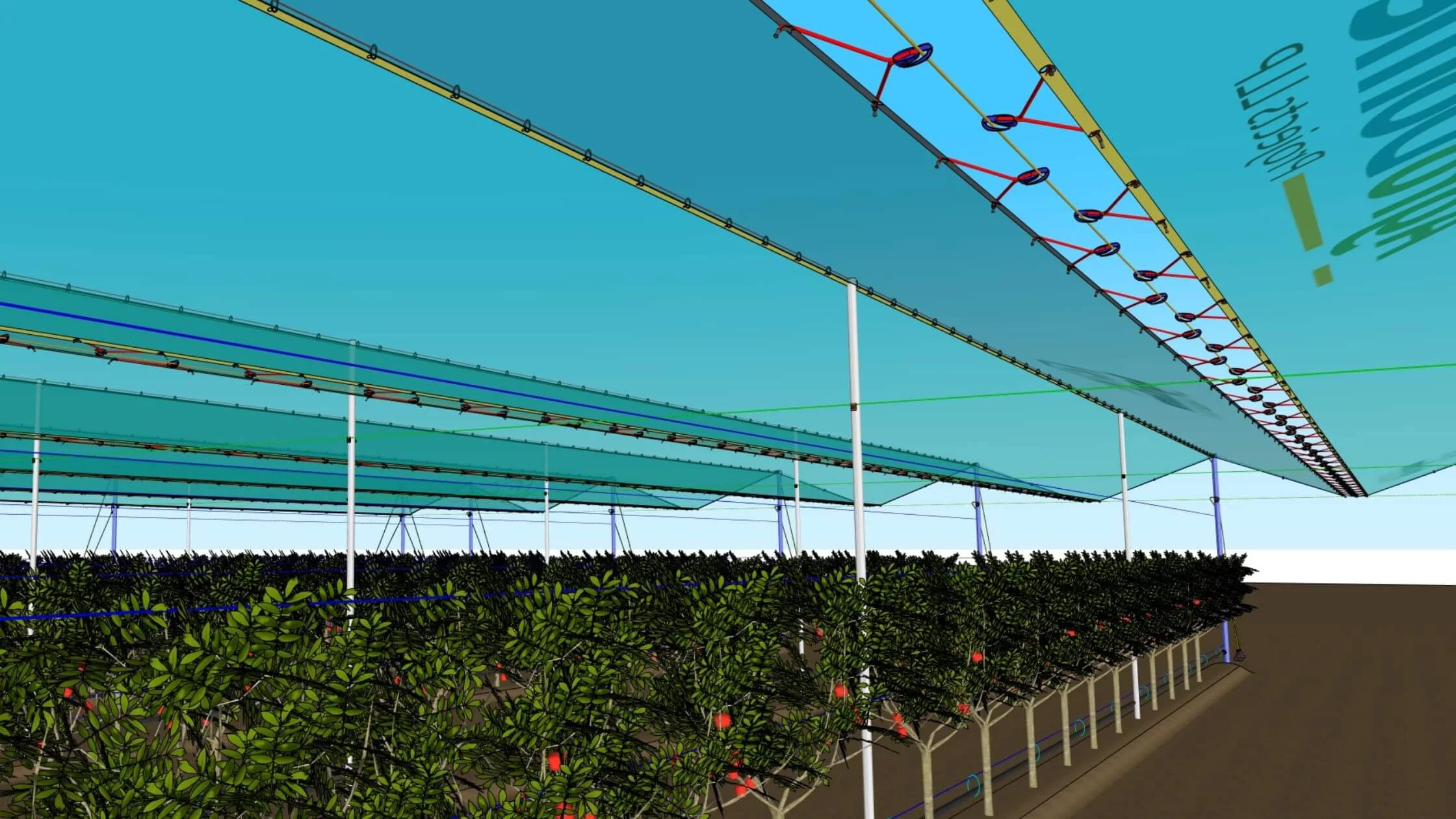

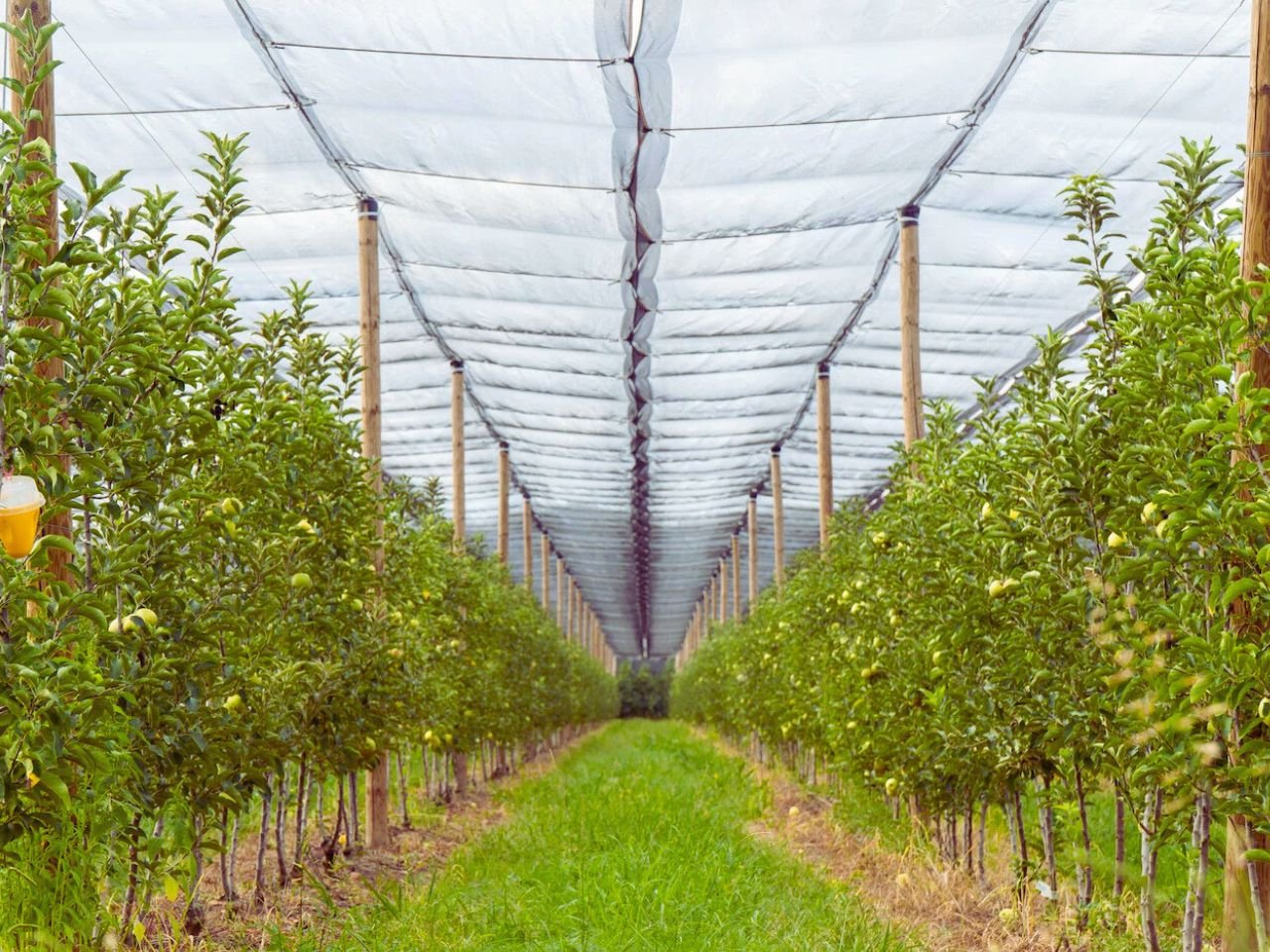

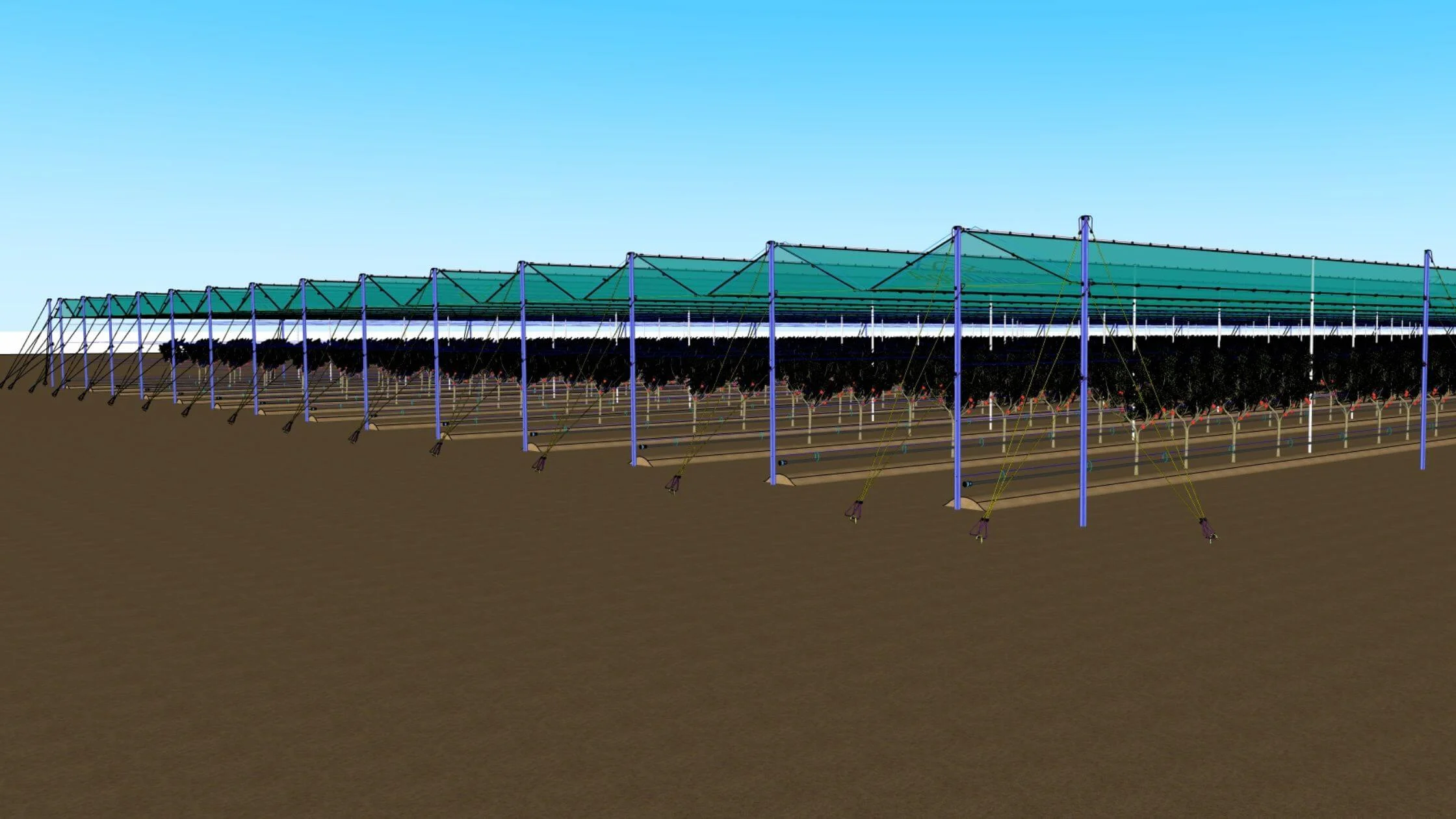

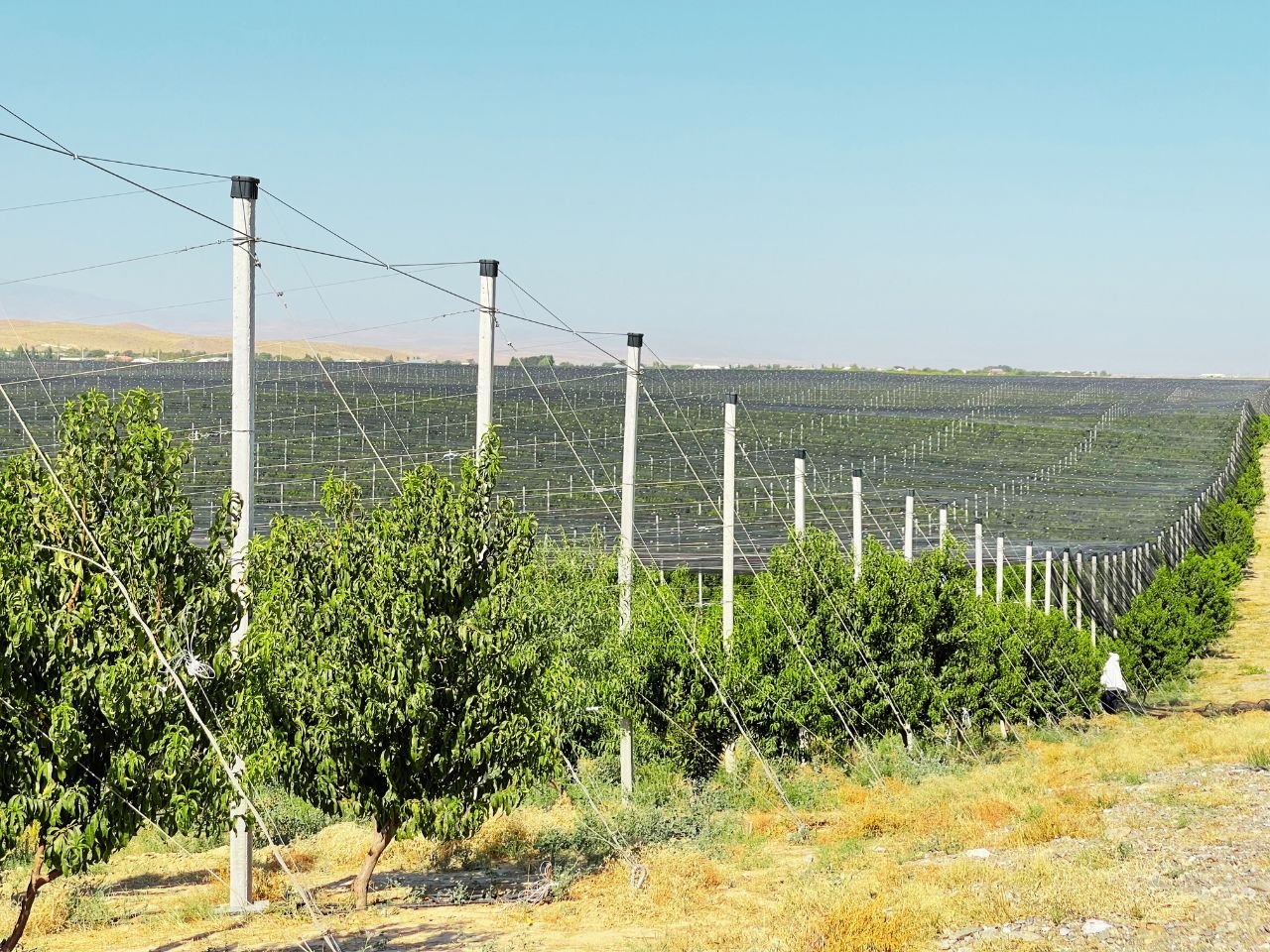

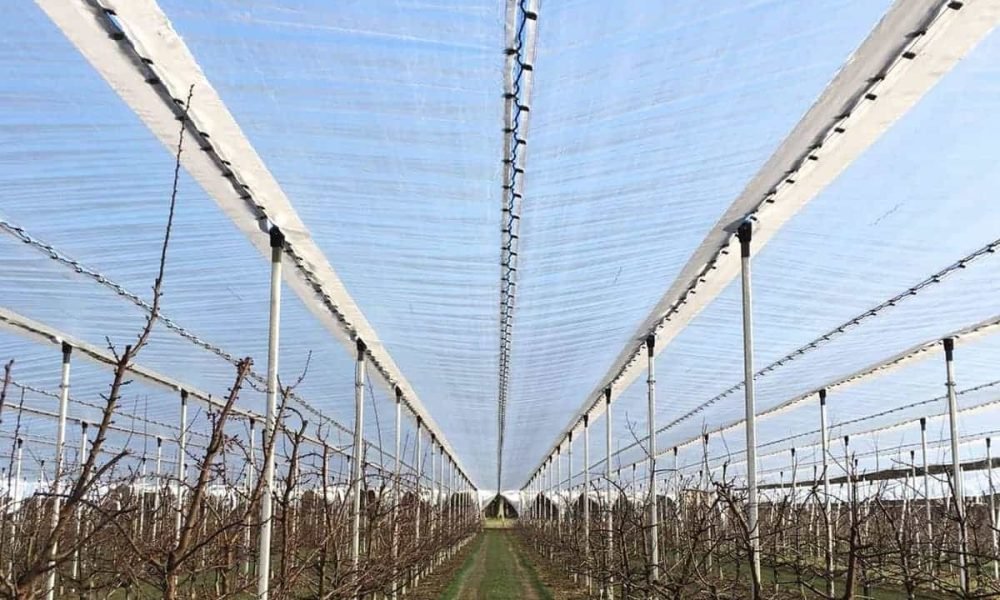

Product name A – Roof Shade Net House (Anti-Hail) with Trellising System for Apple (High Density Plantation)
Available size Customized as per dimensions
Grid 4 m x 10 m, 3.5 m x 8 m, customized as per plantation
Centre height 4.0 m, 5.0 m, 6.0 m
Hockey 1.5 m, 2.0 m, 2.5 m

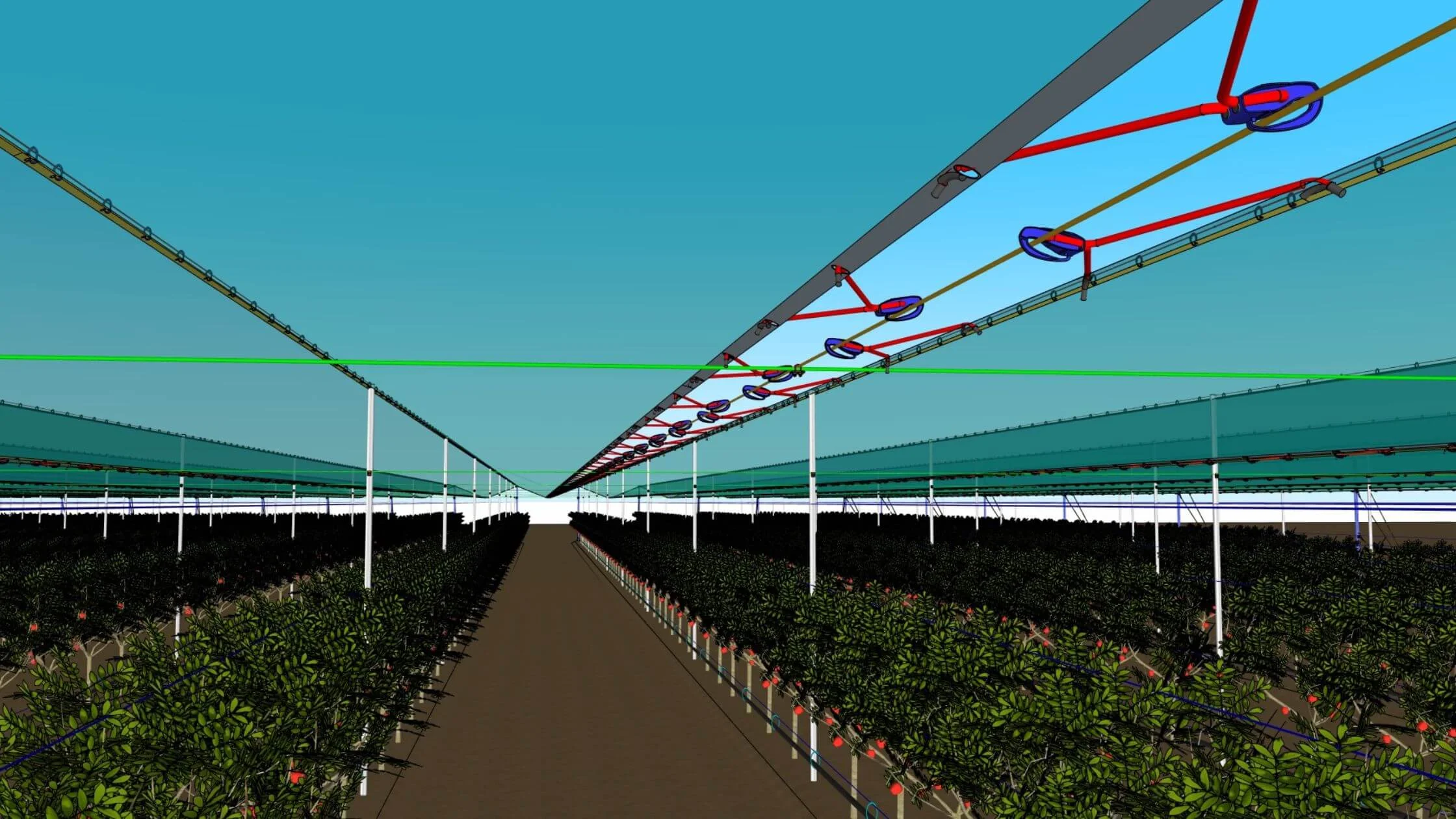

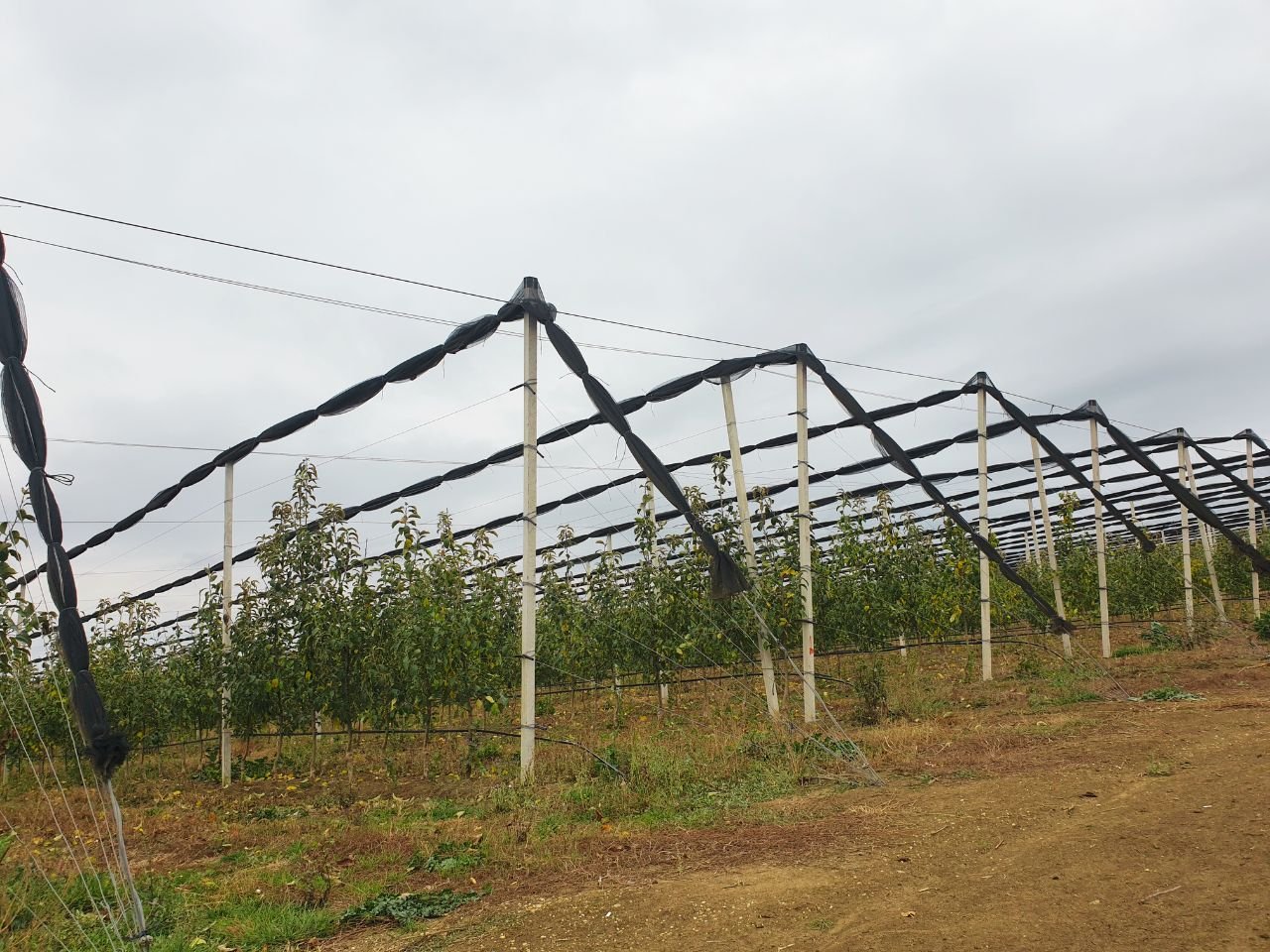

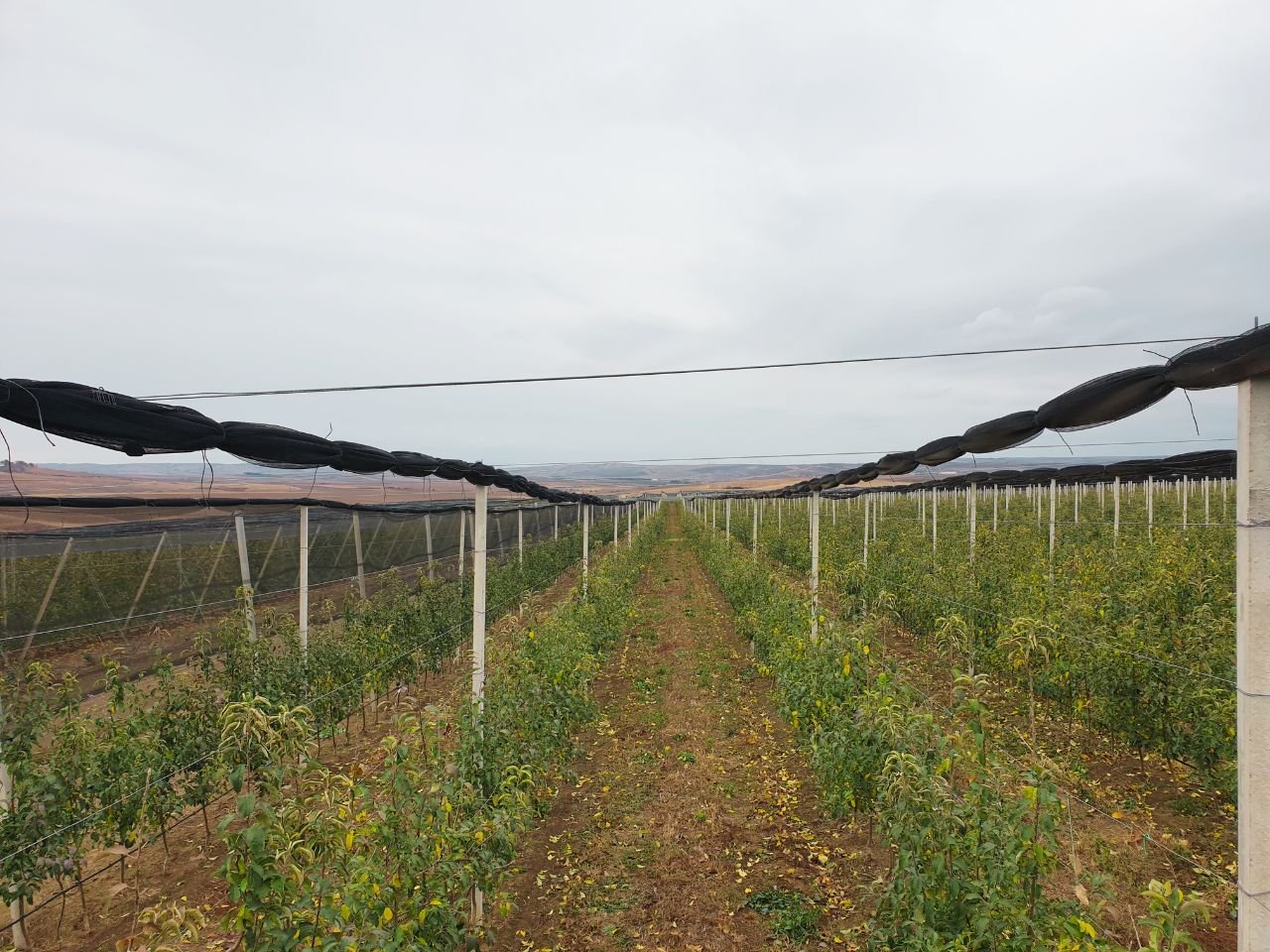

Trellising support system 4 wires to 9 wires. Customization available
Trellis number of wire 3 mm, 4 mm, 5 mm, 6 mm, 8 mm Rope or GI wire with 3 mm Plastic wire
Top covering Hail net, Apron Fabric 140 GSM, Rain protection net

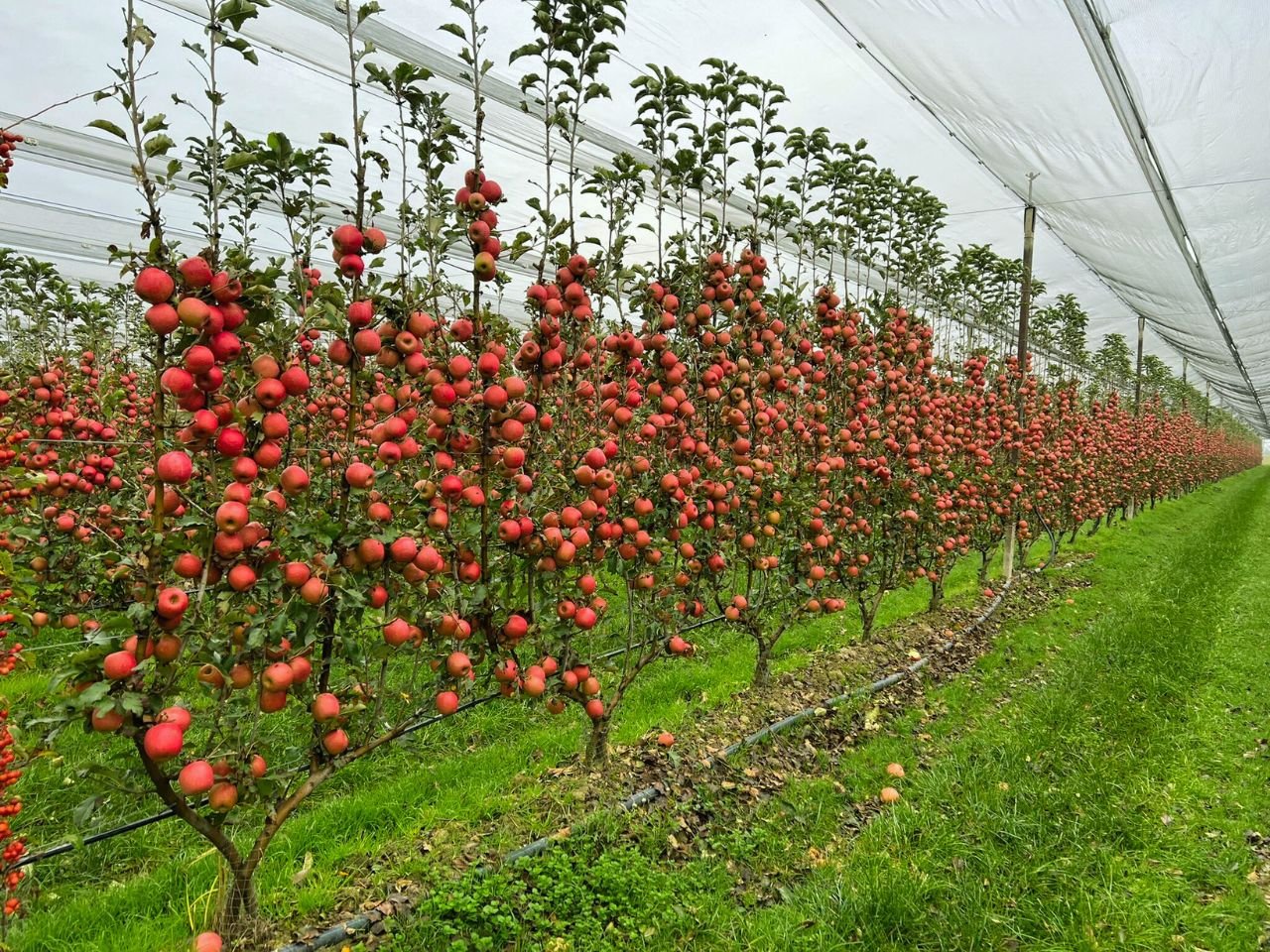

Drip irrigation Inline drip irrigation system.


The fruit orchard structure for apple farming offers several applications

  • Protection from pests and birds

    Acts as a physical barrier to prevent pest damage and bird feeding on apple fruits.

  • Shelter from adverse weather

    Provides protection against hail, frost, wind, and excessive sunlight, reducing the risk of crop damage.

  • Climate control

    Helps regulate temperature, humidity, and airflow within the orchard, creating a favorable microclimate for apple trees.

  • Enhanced fruit quality

    Promotes uniform fruit development, coloration, and flavor, resulting in higher-quality apples.

  • Space optimization

    Supports various planting configurations, including high-density planting, to maximize orchard productivity.


The advantages of utilizing a fruit orchard structure for apple farming include

  • Increased crop yield

    Protects apple trees from environmental stressors, pests, and diseases, leading to higher yields.

  • Improved fruit quality

    Enhances fruit appearance, taste, and marketability, resulting in higher profits for growers.

  • Reduced crop losses

    Minimizes damage caused by pests, birds, adverse weather, and environmental factors, ensuring a more consistent harvest.

  • Sustainable farming practices

    Promotes resource conservation, reduces reliance on chemical pesticides, and supports eco-friendly apple cultivation methods.

  • Enhanced orchard management

    Facilitates easier orchard maintenance, monitoring, and crop management practices, leading to more efficient farming operations.



In summary, the fruit orchard structure for apple farming is a valuable asset for apple growers, offering protection, climate control, and enhanced fruit quality. By harnessing its advantages, growers can achieve greater success and sustainability in apple cultivation, leading to improved profitability and long-term orchard productivity.
