Dome Roof Shade Net house (turnkey/ customized greenhouse structure)

Dome Roof Shade Net house (turnkey/ customized greenhouse structure)

Meaning/Definition

An innovative and modern agricultural greenhouse structure specifically designed with dome shaped roof to provide shade and protection to crops is Dome roof shade net house. It utilizes a framework typically made of metal or PVC pipes, covered with shade netting material to shield crops from excessive sunlight while allowing airflow and light penetration.

Common/ Referred names

This type of structure may also be referred to as a dome-shaped shade net house, dome roof net house, Round (Type) Top Shade Net House (GI Pipe Structure), or simply a shaded dome house.

Technical Specifications

  • Frame Material

    The framework of the net house is usually constructed using metal or PVC pipes, providing structural support and stability to the dome-shaped roof.

  • Optional Features

    Additional features such as roll-up side walls, insect-proof screens, and irrigation systems can be integrated into the net house design as per specific requirements.

  • Netting Material

    High-quality shade netting, commonly made of polyethylene or nylon, is used to cover the frame, providing shade to crops while allowing adequate ventilation and light transmission.

  • Dimensions

    Dome roof shade net houses come in various sizes, with diameters and heights customizable to fit specific agricultural needs and available space.

  • Roof Design

    The distinctive feature of a dome roof shade net house is its dome-shaped roof, which provides uniform coverage over the crops and allows for efficient drainage of rainwater.

  • Anchoring

    Secure anchoring systems, such as ground stakes or concrete footings, are used to anchor the structure firmly to the ground, ensuring stability, especially in windy conditions.

Applications

  • Crop Cultivation

    These structures are suitable for cultivating a wide range of crops, including vegetables, fruits, flowers, and nursery stock, providing a controlled environment for healthy plant growth.

  • Nursery Operations

    Dome roof shade net houses are ideal for seedling propagation and nursery operations, offering a protected environment for young plants to thrive.

  • Research and Education

    They serve as valuable tools for agricultural research institutions, universities, and educational facilities for studying crop production, pest management, and greenhouse technology.

Description

Product Type: Dome Roof Shade Net house (DRNH)
Roof Type: Dome Roof (Round type)
Available Size: 500 m2 / 1000 m2 / 2000 m2 / 4000 m2 / 8000 m2 / 12000 m2
Grid: 6 m x 4 m (NHB guidelines), 6 m x 6m, 4 m x 4 m
Side center/Height: 4.0 m / 5.5 m, 4.5 m / 6.0 m, 4.5 m / 6.0 m
Hockey: 2.0 m, 2.5 m, 3.0 m, 3.5 m
Side Covering: Insect net, 110 GSM, Mono x Mono net with Apron Sheet 140 GSM
Top Covering: Mono x Mono net 100 TO 125 GSM
Second Layer: Inside Sliding Net cover available
Trellising System: 5 mm, 4 mm Rope wire with 3 mm Plastic wire
Drip irrigation: Inline drip irrigation system, Fogging or Sprinkler with filters.
Usage/ application: Vegetable Farming (Broccoli, Capsicum, cucumber, chillies, tomato etc.), Flower farming, Herbs cultivation, nursery farming, etc.

Advantages

  • Sun Protection

    Provides effective shade to crops, reducing heat stress and sunburn, leading to healthier plants and improved yield.

  • Temperature Regulation

    Maintains cooler temperatures inside the net house, creating a favorable environment for plant growth, especially during hot weather.

  • Natural Ventilation

    Allows for controlled airflow, preventing heat buildup and humidity levels, promoting healthy plant growth.

  • Pest and Bird Control

    Acts as a barrier against pests, insects, and birds, reducing crop damage and losses.

  • Year-Round Cultivation

    Enables year-round crop production, extending the growing season and maximizing yield potential.

  • Easy Installation and Maintenance

    Simple construction and maintenance requirements make wire rope shaded net houses easy to install and manage, reducing labor and operational costs.

  • Adaptability

    Can be customized to accommodate various crops and growing systems, offering flexibility to meet specific agricultural needs and preferences.

  • Cost-Effective

    Wire rope shaded net houses are relatively affordable compared to traditional greenhouse structures, making them accessible to small-scale farmers and growers.

Conclusion

In summary, dome roof shade net houses offer effective sun protection, temperature regulation, natural ventilation, and pest control, making them valuable assets for crop production, nursery operations, and research in agriculture.

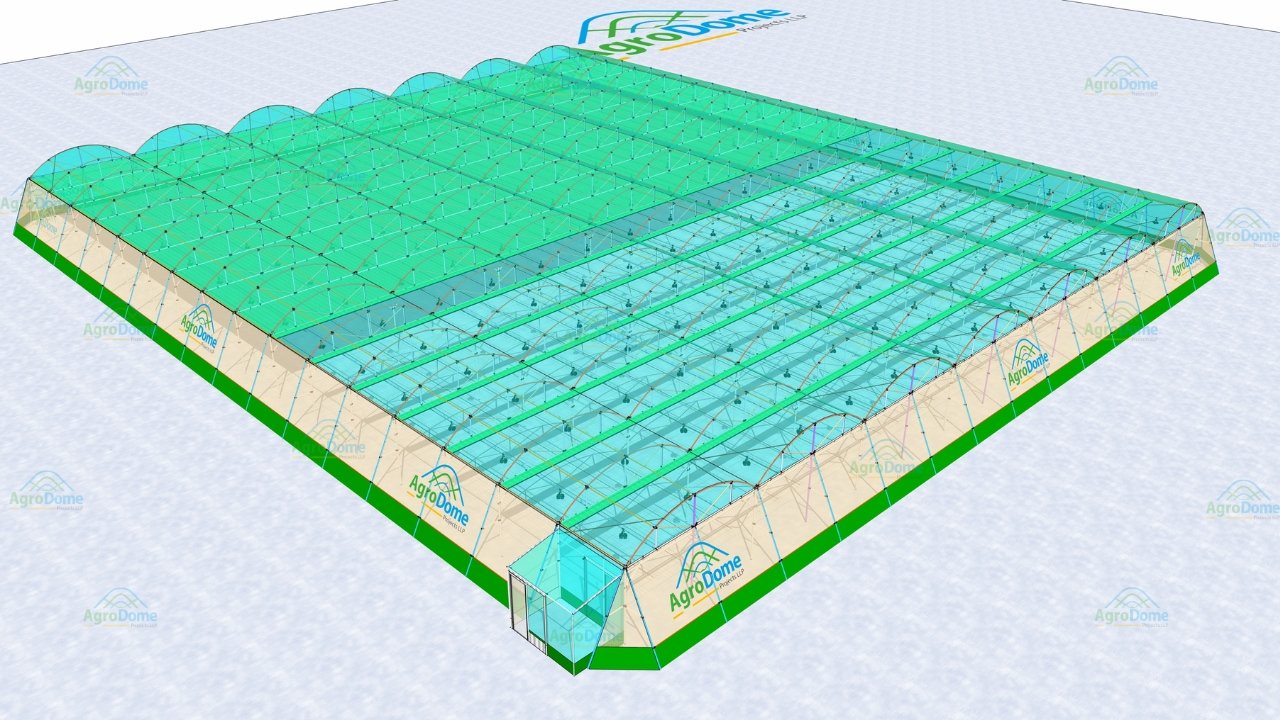

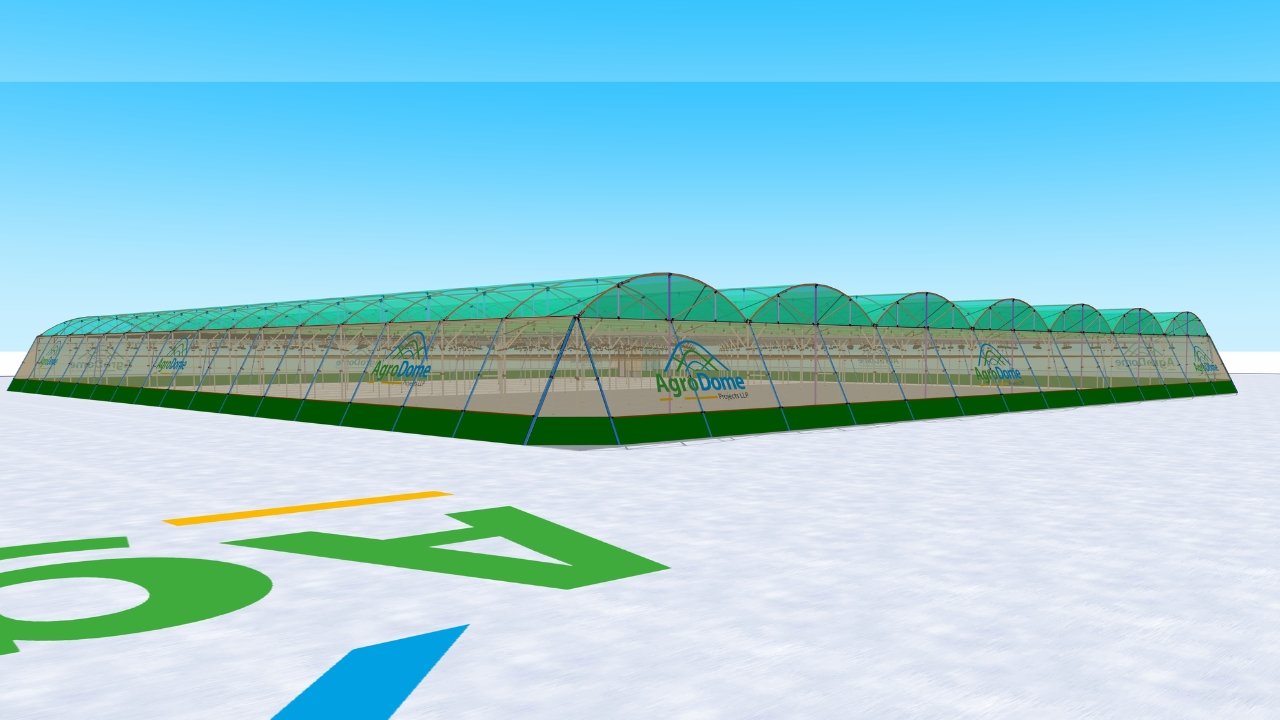

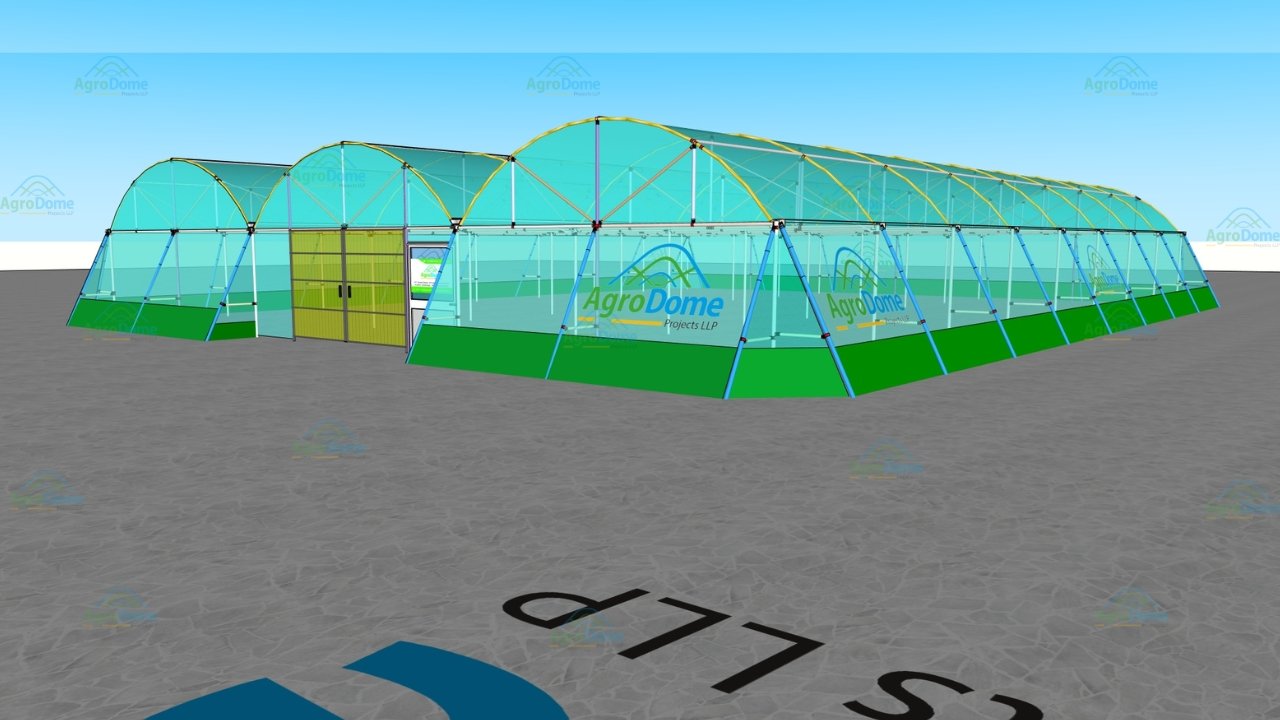

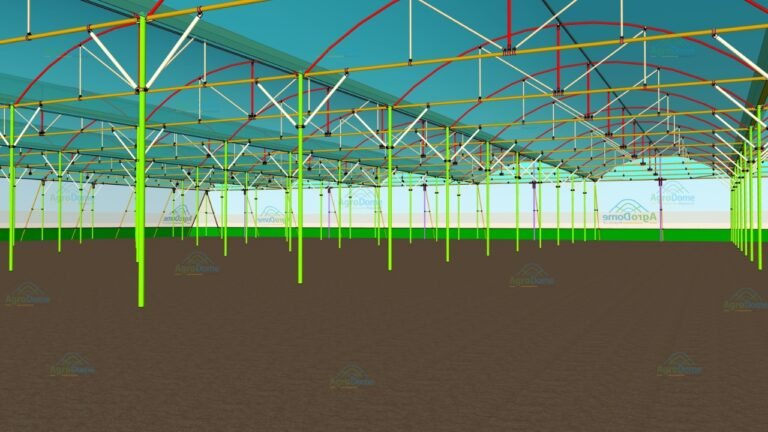

Gallery
